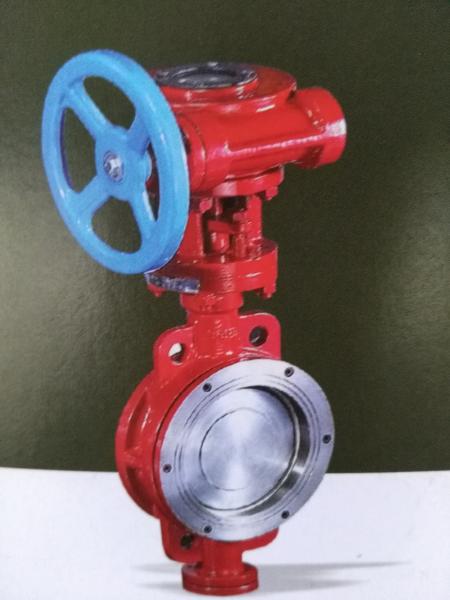

Butterfly Valves

Design: Seal on Body, Seal on Disc, High Performance – Double & Triple Offset.

Typical Applications: Gas Processing, Petrochemical, Chemical, Water & Sewage, Power and Mining.

End Connections: Wafer, Lugged and Double Flanged (ANSI & AS4087)

Pressure Class Range: ANSI Class 150 to 900, PN10 / PN16 / PN25 / PN40 / PN64

Sizes: DN50 to DN3600 (2” to 144”).

Body Materials: Carbon Steel, Stainless Steel, Cast Iron, Ductile Iron, PFA / PTFE Lined.

Seat & Seal Materials: Virgin PTFE, Reinforced PTFE, PFA, Viton, NBR, EPDM and Metal.

Accessories: Actuators, Limit Switchboxes, Solenoids, Extensions and Special Adaptions.

Quality: Pressure Tests – API 598, Fire Tests – API 6FA, API 607.

Standards: Design, Production and Testing: AS, ASME, ANSI, API, and ASTM. Quality System: EN ISO 9001:2008, EN ISO 14001:2004.

Design Details: A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve (quarter turn) which allows for quick shut off. Butterfly valves are generally favoured because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the centre of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position. The valve may also be opened incrementally to throttle flow.

Kata Valve (Group) Co.,Ltd. is headquartered at Baoshan City Industrial Zone,Shanghai China, occupying over 35 thousands square meters and will be looking at other expansions in the near future. The registration capital of the whole Group comes to RMB 100 Millions. Also it is one of high-tech enterprises in Shanghai, a member of the Association of China General Machinery, and a regular supplier to China Petroleum & Natural Gas Corp,China Petrochemical,China Power,and China Sea Oil etc.

With an experience of about 30 years in manufacturing all kinds of valves,Kata specializes in disigning, making and marketing valves for all industries. Its products range from Ball, Butterfly, Gate, Globe,Check,Plug valves to Marine valves and other valves;nominal size from 1/2" to 48" (DN15 to DN1200);nominal pressure from 150Lb to 2500Lb (PN1.0Mpa to PN42.0Mpa); materials cover WCB, WCC, WC6, WC9, CF8, CF3, CF8m, CF3M, LCB, LCC, A105, 304, 316, 304L, 316L, F11, F22, LF2, F51, etc. The products are widely used in the fields of petroleum, chemical, metallurgy, power, fuel gas, city pipeline networks and so on. Certificated with ISO9001, API6D, CE/ PED, Kaitai has developed excellent quality control and management system.

Kata has a series of modern machines and equipments such as vertical lathes, drill press, milling lathe, grinding machine , other general machine tools and physical & chemical analysis & experiment devices. Also it has developed a well-trained and dedicated team including engineers,technicians and other employees. This allows us to offer customers quality product,competitive pricing and prompt deliveries. We always work hard to improve our existing products and pursue new ideas and ways to stay ahead of the ever changing market.
