A105 Material NPS1/2'-24' Top Entry Ball Valve Class 150-2500 In Hot Sale

Production Discription

This product is a new type top entry combination ball valve,the seat can be installed and move around the body.Through the thread,the outer margin of the seat connected to the retainer ring.There is spring on the support cover which installed on the valve body,and the retainer ring can compress spring.The fabrication holes are on the outer margin of the seat and the retainer ring.This new type product adopts total body design.The compensation can be automatically,the possibility of leakage is small,safety in use,vibrate resistance,and double seal.The ball is installed from the top part,so can finish the maintenance without removing the pipe.It is very convenient.

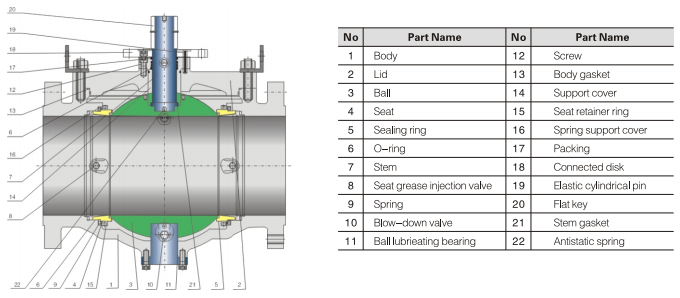

Materials of parts

Quality assurance system

1.Sclerometer

2.Universeal material testing machine

3.High speed analyzer

4.Chemical test

5.Electric analysis scales

6.Nde mt (magnetic powder) inspection

NDE UT (ultasonic) inspection

NDE PT (penetrate) inspecion

PMI spectrum analysis

Hydraulic pressure test

Cryogenic ball valve test

Fire-safe test

Certification

• API-6D
• API-Q1
• API2014
• ISO 9001-2008
• ISO-TS-29001
• CE-PED
• API 607 Fire safe certificate
• API 6FA Fire safe certificate
• China national petroleum corporation approved vendor
• Shanghai high enterprise certificate

Our major products

1. Gate valve series
2. Ball valve series
3. Globe valve series
4. Check valve series
5. Butterfly valve series
6. Other valve series

Exporting is the dominant operation at Kaitai.In the process of KATA brand promotion and building up our distribution channels over the years and now has many satisfied and loyal customers.KATA is well recognized and its products are widely used in the oil and gas industry,power plant,boiler,metallurgy,pressure vessel,water supply and drainage and etc.

Kata Valve (Group) Co.,Ltd. is headquartered at Baoshan City Industrial Zone,Shanghai China, occupying over 35 thousands square meters and will be looking at other expansions in the near future. The registration capital of the whole Group comes to RMB 100 Millions. Also it is one of high-tech enterprises in Shanghai, a member of the Association of China General Machinery, and a regular supplier to China Petroleum & Natural Gas Corp,China Petrochemical,China Power,and China Sea Oil etc.

With an experience of about 30 years in manufacturing all kinds of valves,Kata specializes in disigning, making and marketing valves for all industries. Its products range from Ball, Butterfly, Gate, Globe,Check,Plug valves to Marine valves and other valves;nominal size from 1/2" to 48" (DN15 to DN1200);nominal pressure from 150Lb to 2500Lb (PN1.0Mpa to PN42.0Mpa); materials cover WCB, WCC, WC6, WC9, CF8, CF3, CF8m, CF3M, LCB, LCC, A105, 304, 316, 304L, 316L, F11, F22, LF2, F51, etc. The products are widely used in the fields of petroleum, chemical, metallurgy, power, fuel gas, city pipeline networks and so on. Certificated with ISO9001, API6D, CE/ PED, Kaitai has developed excellent quality control and management system.

Kata has a series of modern machines and equipments such as vertical lathes, drill press, milling lathe, grinding machine , other general machine tools and physical & chemical analysis & experiment devices. Also it has developed a well-trained and dedicated team including engineers,technicians and other employees. This allows us to offer customers quality product,competitive pricing and prompt deliveries. We always work hard to improve our existing products and pursue new ideas and ways to stay ahead of the ever changing market.
