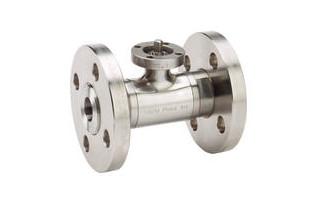

2 way Full-bore Flanged Stainless Steel Ball Valve

GENERAL FEATURES

Flanges as per: EN 1092-1; dimensions as per DIN 3202-F4; turning threaded flanges as per UNI PN 16.

Working temperature: from -20°C to +160°C

Working pressure: see table.

Fluid range: food industry.

Head of the valve as per ISO 5211 specifications.

The manual version (with lever) doesn't have the ISO 5211 top work and its therefore not possible to mount on it any kind of actuators

ON REQUEST

Zinc-plated flanges

Flanges ASME B16.5 clas 150,300..

Seals made of:
-PTFE with glass
-PTFE with carbon graphite
- High-molecular weight polyethylene.

For other applications, please contact our technical department.

APPROVALS

ATEX version in conformity with directive 2014-34-EU on request

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gates and globe valves, but they lack their fine control in throttling applications.

The ball valve's ease of operation, repair, and versatility lend it to extensive industrial use, supporting

pressures up to 1000 bar and temperatures up to 752 °F (500 °C), depending on design and materials used. Sizes typically range from 0.2 to 48 inches (0.5 cm to 121 cm). Valve bodies are made of metal, plastic, or metal with a ceramic; floating balls are often chrome plated for durability. One disadvantage of a ball valve is that they trap water in the center cavity while in the closed position. In the event of a freeze, the sides can crack due to expansion of ice forming. Some means of insulation or heat tape in this situation will usually prevent damage.Another option for cold climates is the "freeze tolerant ball valve". This style of ball valve incorporates a freeze plug in the side so in the event of a freeze up, the freeze plug ruptures, (acts as a sacrificial disk), thus making for an easy repair. Now instead of replacing the whole valve, just screw in a new freeze plug.

• API-6D
• API-Q1
• API2014
• ISO 9001-2008
• ISO-TS-29001
• CE-PED
• API 607 Fire safe certificate
• API 6FA Fire safe certificate
• China national petroleum corporation approved vendor
• Shanghai high enterprise certificate

Our major products

1. Gate valve series
2. Ball valve series
3. Globe valve series
4. Check valve series
5. Butterfly valve series
6. Other valve series

Exporting is the dominant operation at Kaitai.In the process of KATA brand promotion and building up our distribution channels over the years and now has many satisfied and loyal customers.KATA is well recognized and its products are widely used in the oil and gas industry,power plant,boiler,metallurgy,pressure vessel,water supply and drainage and etc.

Kata Valve (Group) Co.,Ltd. is headquartered at Baoshan City Industrial Zone,Shanghai China, occupying over 35 thousands square meters and will be looking at other expansions in the near future. The registration capital of the whole Group comes to RMB 100 Millions. Also it is one of high-tech enterprises in Shanghai, a member of the Association of China General Machinery, and a regular supplier to China Petroleum & Natural Gas Corp,China Petrochemical,China Power,and China Sea Oil etc.

With an experience of about 30 years in manufacturing all kinds of valves,Kata specializes in disigning, making and marketing valves for all industries. Its products range from Ball, Butterfly, Gate, Globe,Check,Plug valves to Marine valves and other valves;nominal size from 1/2" to 48" (DN15 to DN1200);nominal pressure from 150Lb to 2500Lb (PN1.0Mpa to PN42.0Mpa); materials cover WCB, WCC, WC6, WC9, CF8, CF3, CF8m, CF3M, LCB, LCC, A105, 304, 316, 304L, 316L, F11, F22, LF2, F51, etc. The products are widely used in the fields of petroleum, chemical, metallurgy, power, fuel gas, city pipeline networks and so on. Certificated with ISO9001, API6D, CE/ PED, Kaitai has developed excellent quality control and management system.

Kata has a series of modern machines and equipments such as vertical lathes, drill press, milling lathe, grinding machine , other general machine tools and physical & chemical analysis & experiment devices. Also it has developed a well-trained and dedicated team including engineers,technicians and other employees. This allows us to offer customers quality product,competitive pricing and prompt deliveries. We always work hard to improve our existing products and pursue new ideas and ways to stay ahead of the ever changing market.
